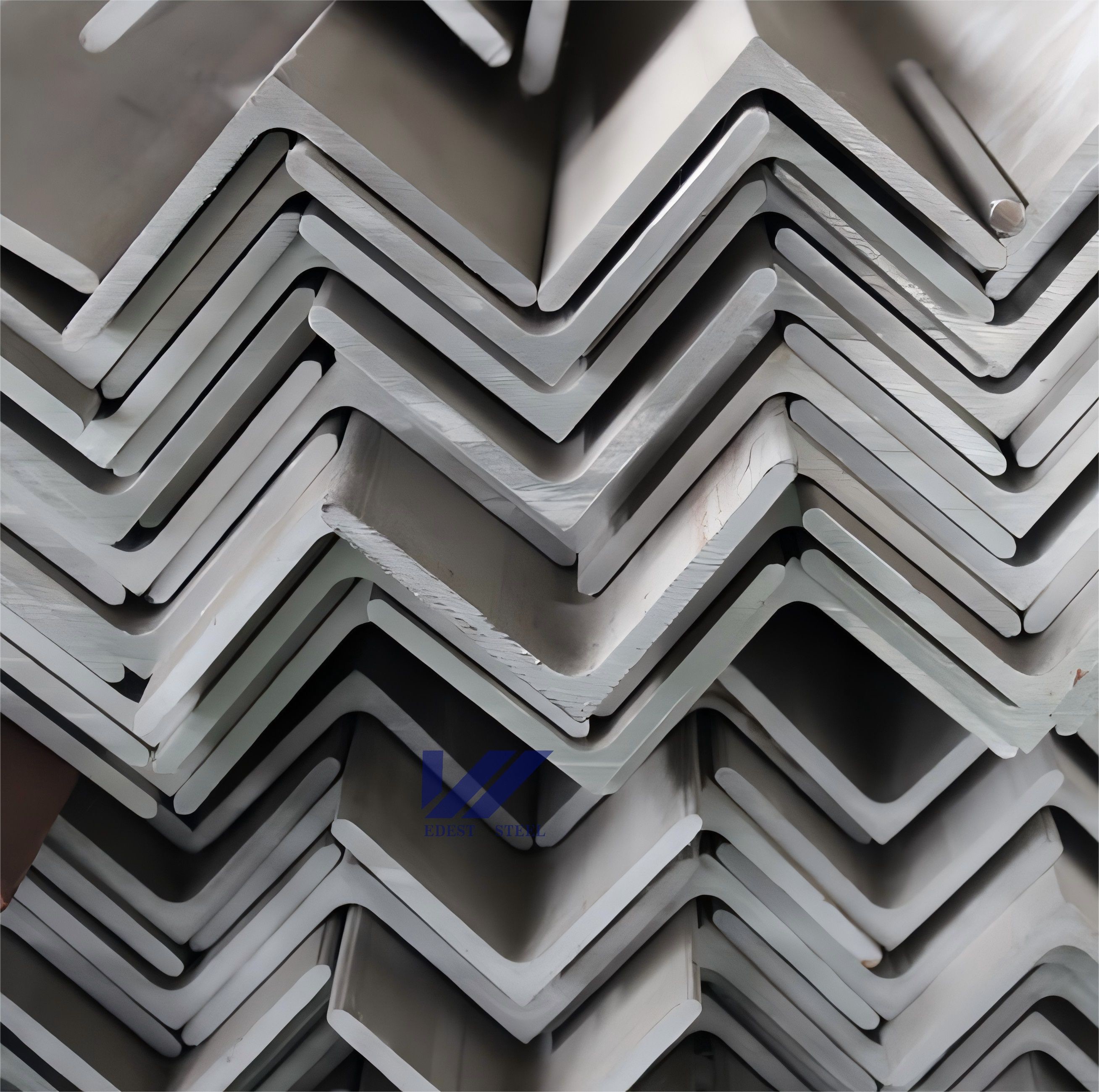

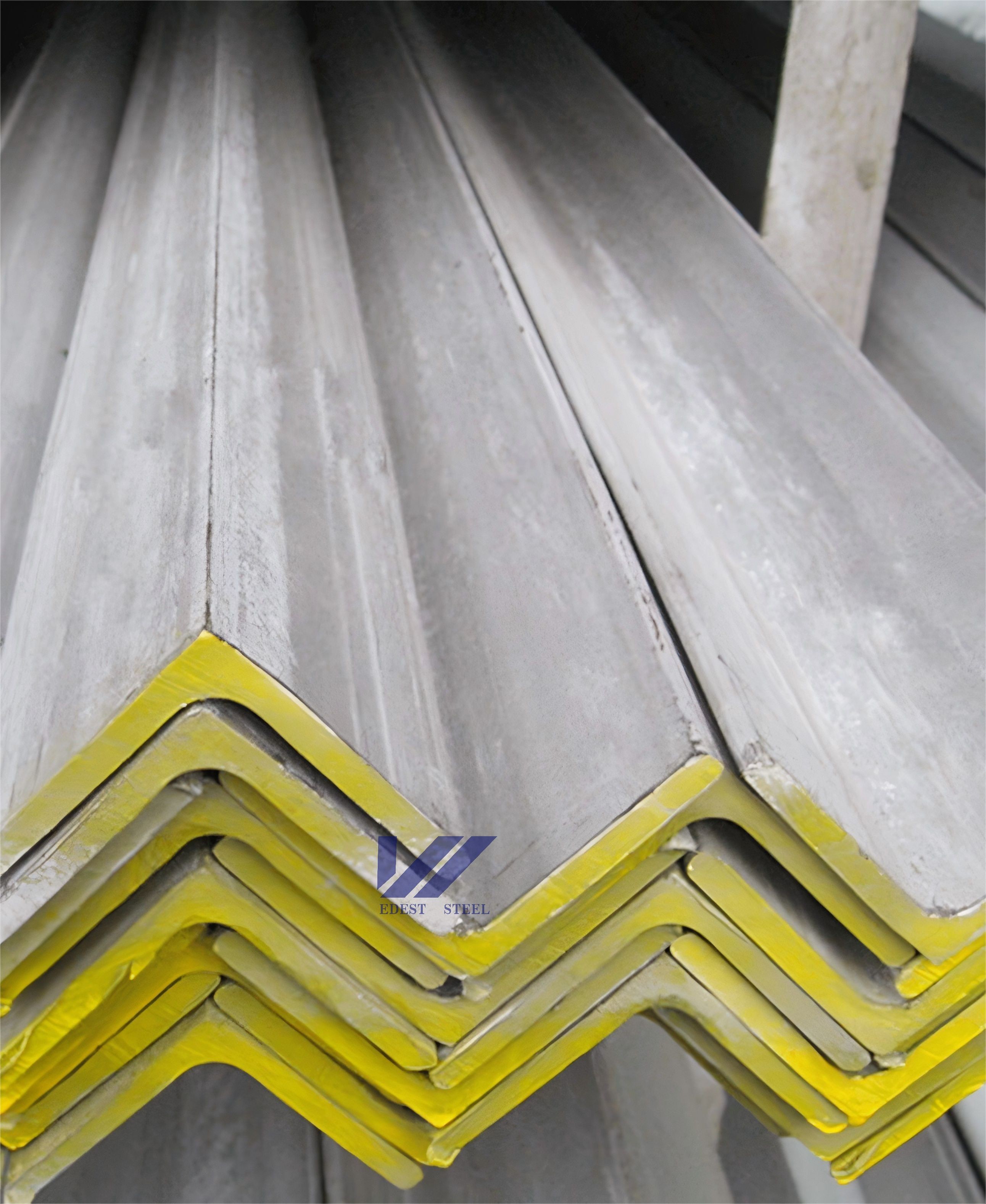

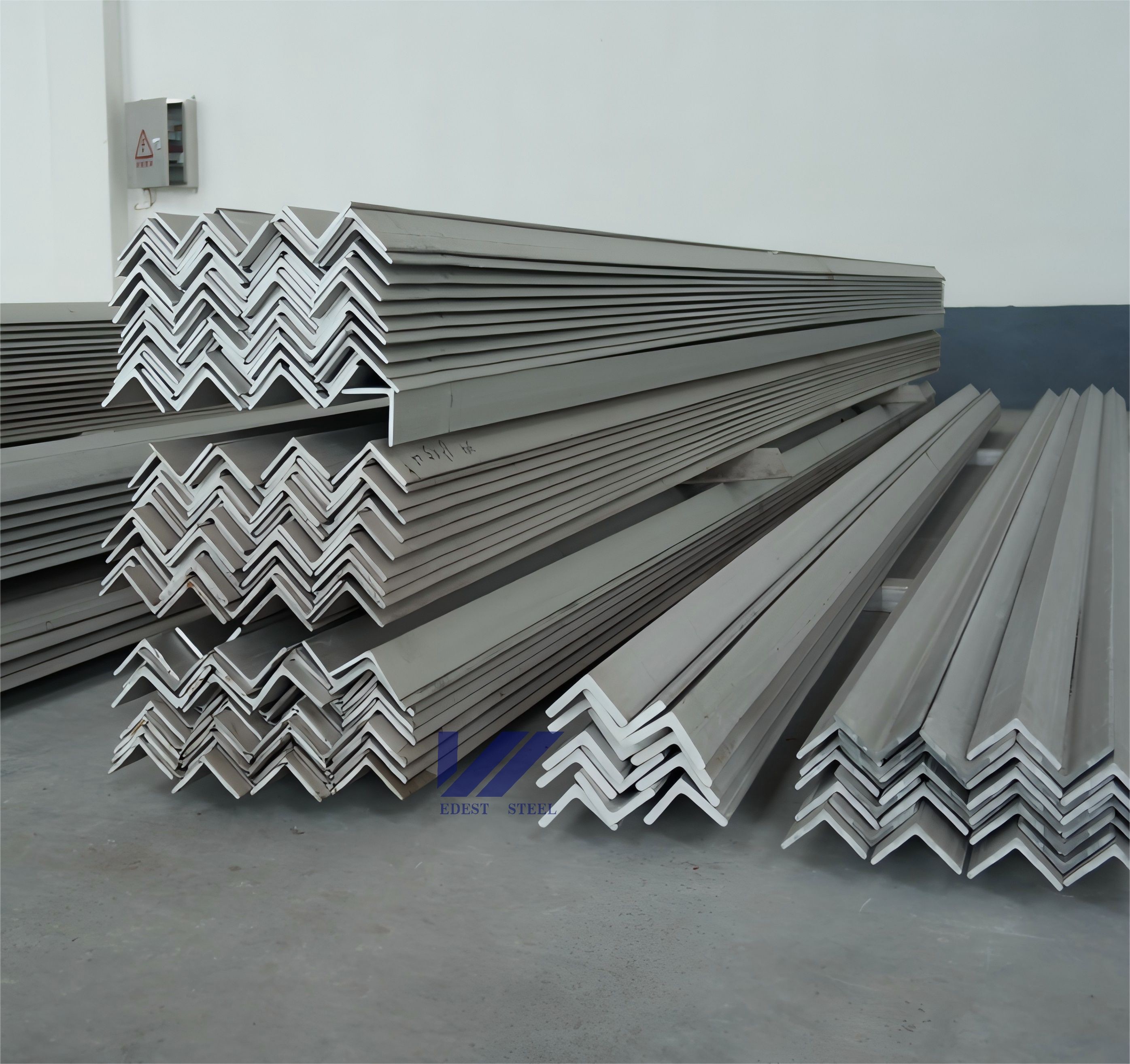

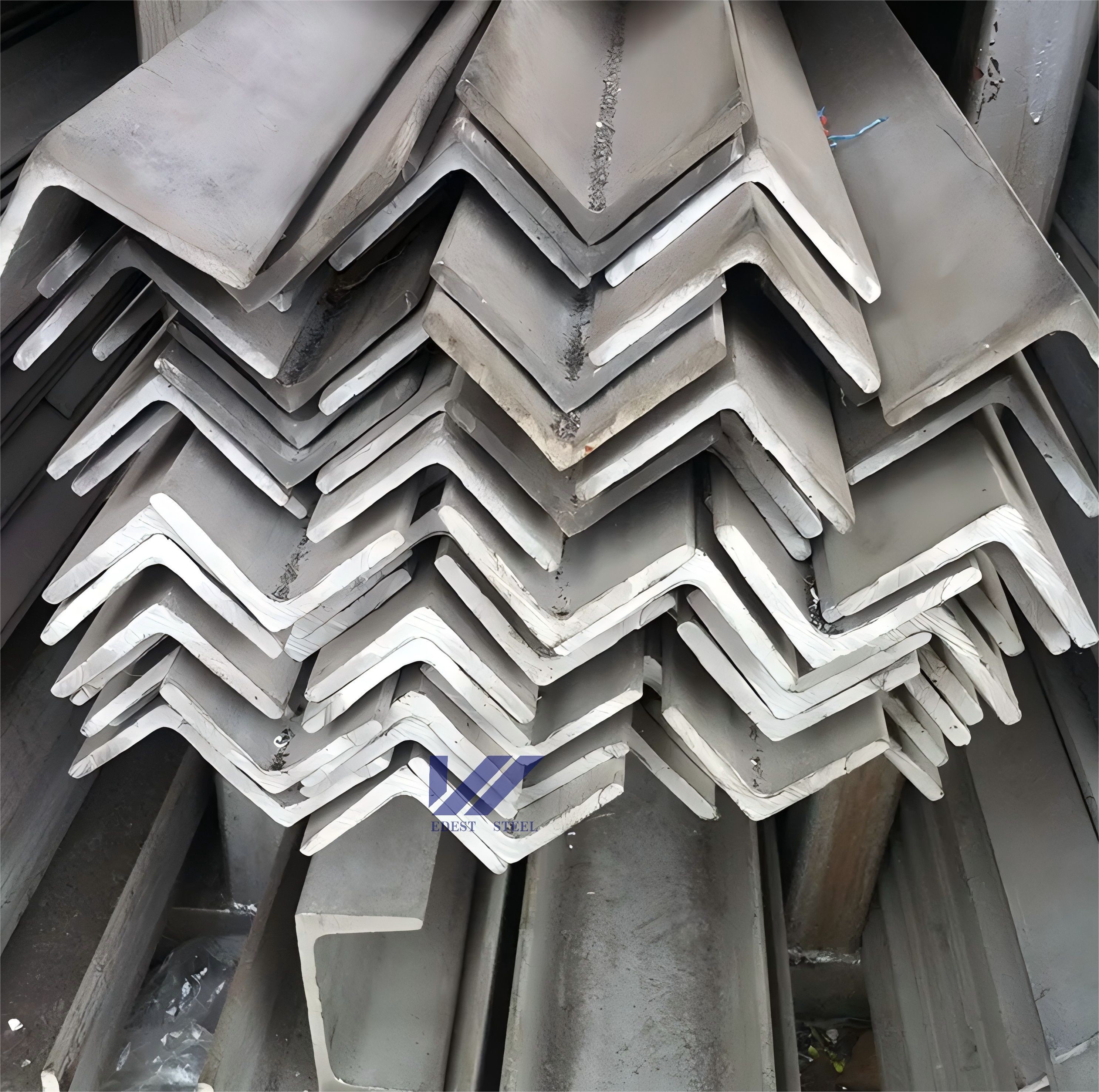

Low carbon 304L stainless steel angle, easy to weld
Product description:
Side length size:
The side length size of 304L stainless steel angle steel usually has a variety of specifications, the common ones are 25mm×25mm, 30mm×30mm, 40mm×40mm, 50mm×50mm, 60mm×60mm, 75mm×75mm, 90mm×90mm, etc.
Different side length sizes are suitable for different engineering needs, and can be selected according to actual conditions.
Thickness:
The thickness is generally between 3mm and 10mm, and special thickness can also be customized according to customer requirements. Thicker angle steel is suitable for structures with larger loads, while thinner angle steel can be used for some light structures or decorative purposes.
Length:
The standard length is generally 6 meters, but it can also be cut according to customer needs to provide products of different lengths.
Corrosion resistance:
304L stainless steel angle steel has good corrosion resistance and can remain stable in atmospheric environment, most organic acids, inorganic acids, alkalis, salts and other media. This is due to the chromium, nickel and other elements it contains, which form a dense oxide film on the surface of the material to prevent further corrosion.
Especially in highly corrosive occasions such as marine environment and chemical industry, 304L stainless steel angle steel shows excellent corrosion resistance and can effectively extend its service life.
Low Carbon Content:
The “L” stands for low carbon, and 304L stainless steel has a low carbon content. This makes it less susceptible to intergranular corrosion during hot working processes such as welding. Intergranular corrosion is a corrosion phenomenon that occurs at the boundaries of metal grains under certain conditions and can seriously affect the strength and service life of the material.
The low carbon content also improves the material's machinability and welding properties, making it easier to perform various processing operations.
Good mechanical properties:
304L stainless steel angle steel has high strength and hardness, and can withstand certain loads and pressures. At the same time, it also has good toughness and ductility, is not easy to break when subjected to external forces, and can be processed by bending, stamping and other operations.
Its mechanical properties can also remain relatively stable under different temperature conditions, and is suitable for various working environments.
304 stainless steel angle stock size table
| 2# |
20×20×3 |
201/304/316 |
| 3# |
25×25×3 |
201/304/316 |
| 4# |
30×30×3/4 |
201/304/316 |
| 5# |
40×40×3/4 |
201/304/316 |
| 6# |
50×50×3/4/5 |
201/304/316 |
| 7# |
60×60×5/6/8/10 |
201/304/316 |
| 8# |
70×70×6/8/10 |
201/304/316 |
| 9# |
80×80×6/8/10 |
201/304/316 |
| 10# |
100×100×6/8/10 |
201/304/316 |
| 11# |
120×120×8/10/12 |
201/304/316 |
| 12# |
150×150×10/12 |
201/304/316 |
| 13# |
200×200×10/12 |
201/304/316 |
| 14# |
250×250×10/12 |
201/304/316 |
Chemical composition table of stainless steel angle
| Grade |
Chemical Composition (%) |
| |
C |
Si |
Mn |
P |
S |
Ni |
Cr |
Mo |
| 201 |
≤0.15 |
≤1.00 |
5.5~7.5 |
≤0.060 |
≤0.030 |
3.50~5.50 |
16.00~18.00 |
|
| 301 |
≤0.15 |
≤1.00 |
≤2.00 |
≤0.045 |
≤0.030 |
6.00~8.00 |
16.00~18.00 |
|
| 302 |
≤0.15 |
≤1.00 |
≤2.00 |
≤0.045 |
≤0.030 |
8.00~10.00 |
17.00~19.00 |
|
| 304 |
≤0.08 |
≤1.00 |
≤2.00 |
≤0.045 |
≤0.030 |
8.00~10.50 |
18.00~20.00 |
- |
| 304L |
≤0.030 |
≤1.00 |
≤2.00 |
≤0.045 |
≤0.030 |
9.00~13.50 |
18.00~20.00 |
- |
| 316 |
≤0.045 |
≤1.00 |
≤2.00 |
≤0.045 |
≤0.030 |
10.00~14.00 |
10.00~18.00 |
2.00~3.00 |
| 316L |
≤0.030 |
≤1.00 |
≤2.00 |
≤0.045 |
≤0.030 |
12.00~15.00 |
16.00~18.00 |
2.00~3.00 |
