Detail Information

Keyword:	304 Stainless Steel Angle	Technique:	Hot Rolled
Standard:	AISI,ASTM,DIN,JIS,BS,NB	Type:	Equal
Steel Grade:	316, 304, 201	Surface Finish:	Pickling,Hair Line,etc
Model Number:	Angle Bar	Product Name:	Stainless Steel Angle Bar
Material:	Stainless Steel	Angle Bar:	20x20x2mm - 200x200x20mm
Application:	Profile Bracket	Processing Service:	Bending, Welding, Decoiling, Punching, Cutting
Loading Port:	Shanghai	Size:	Customizable
Side Length:	40x40mm	Edge Width:	20X20mm-200X200mm
Highlight:	SS 304 stainless steel angle , 40x40mm stainless steel angle , 5mm stainless steel angle

Product Description

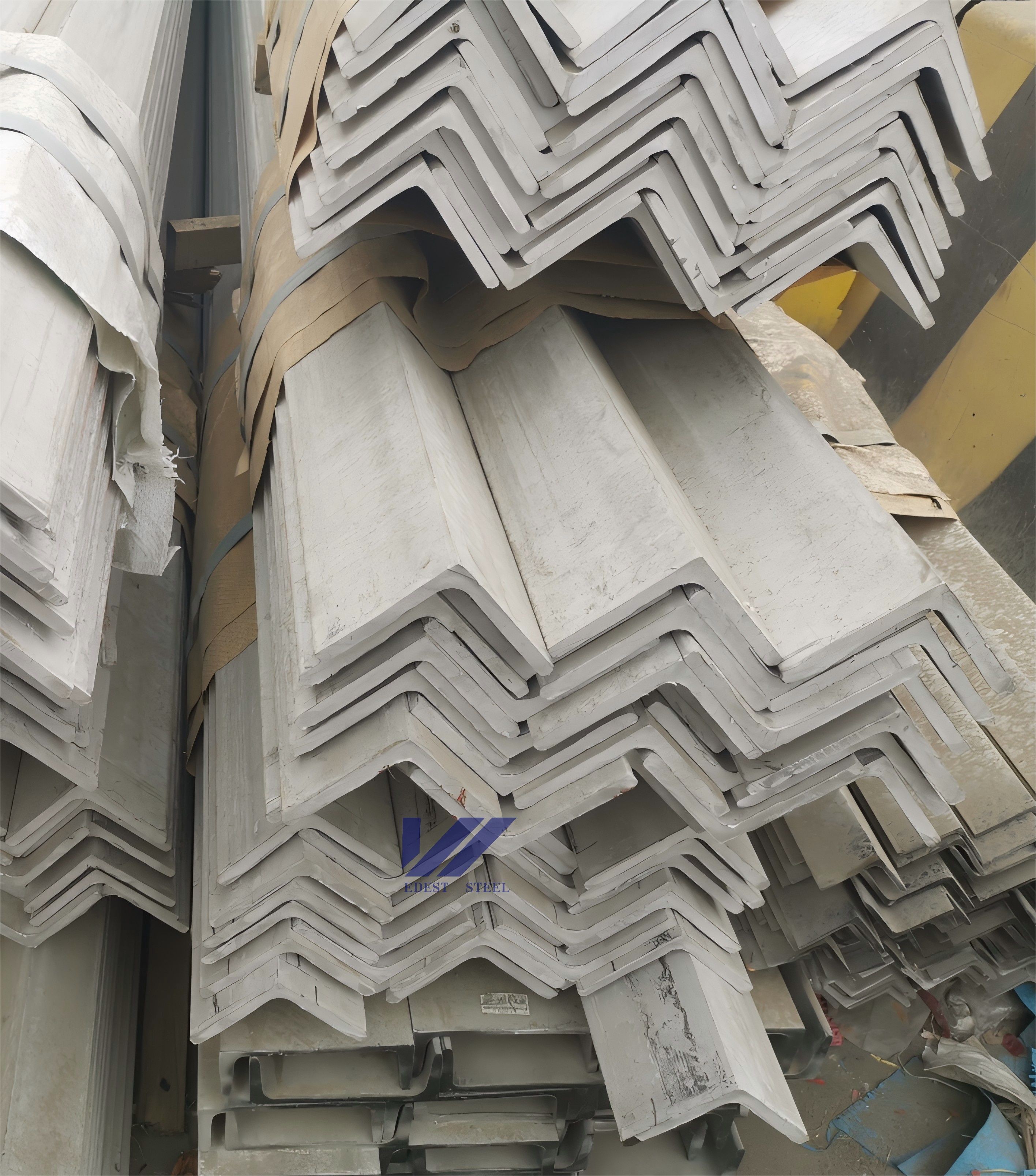

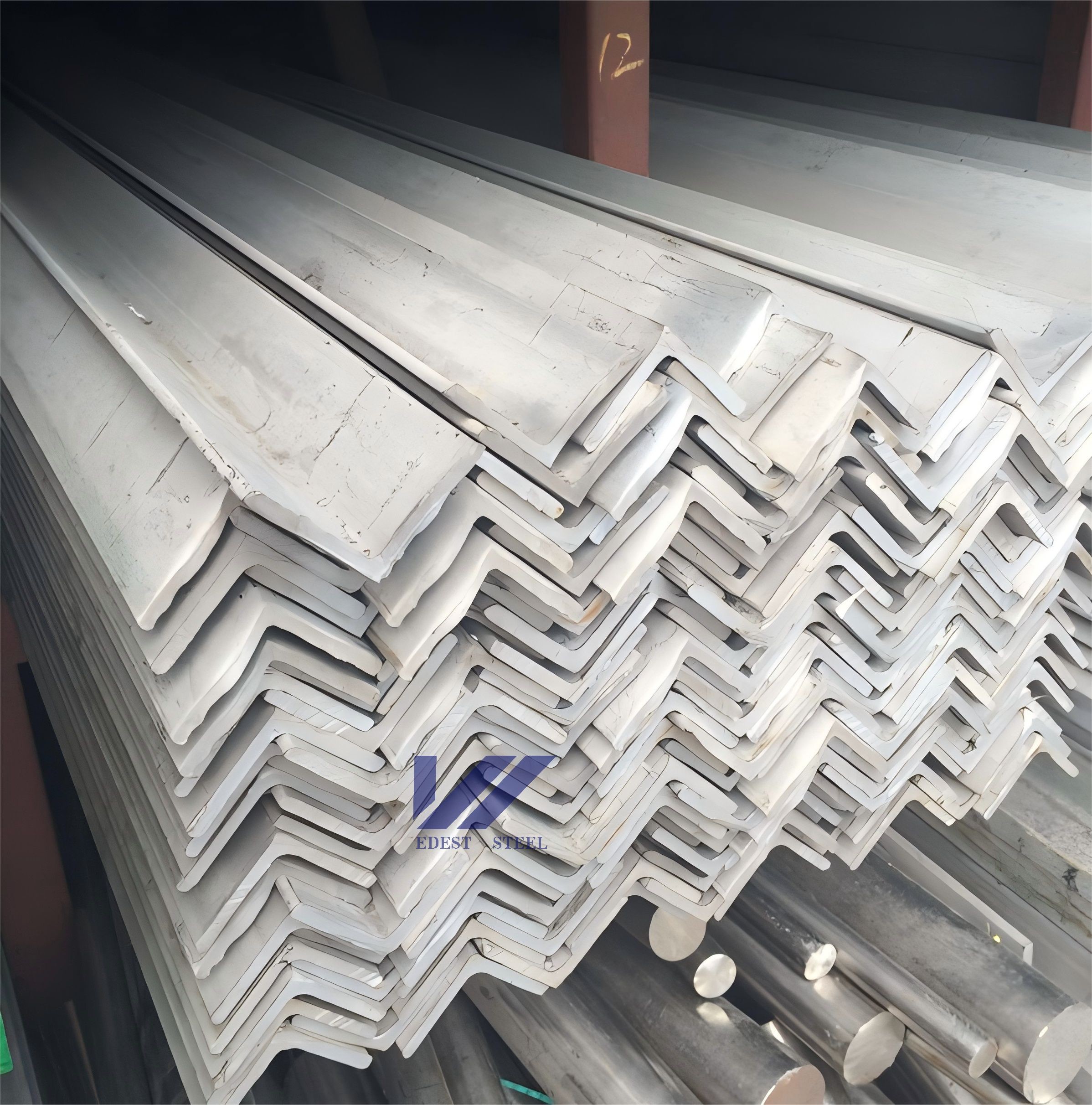

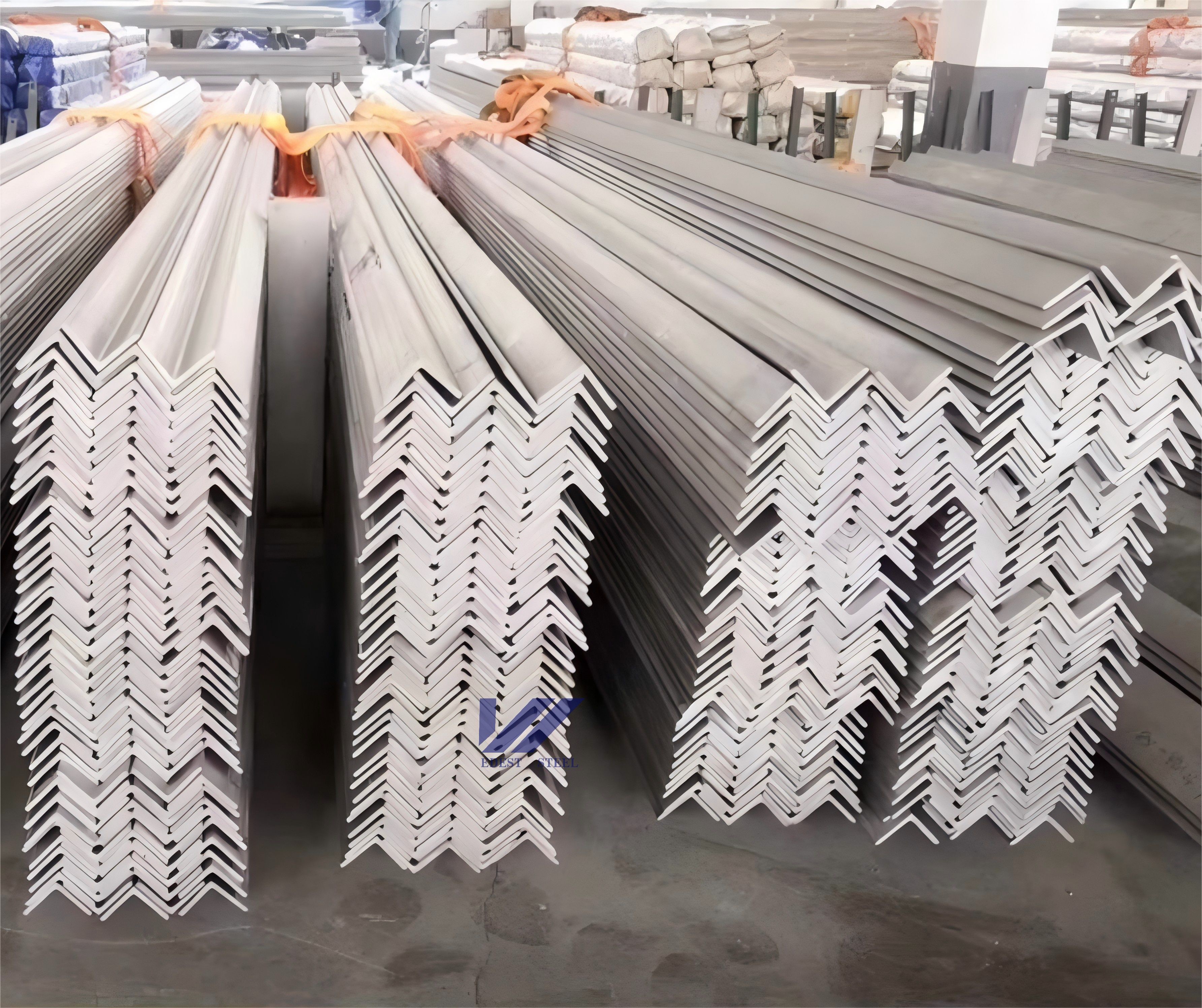

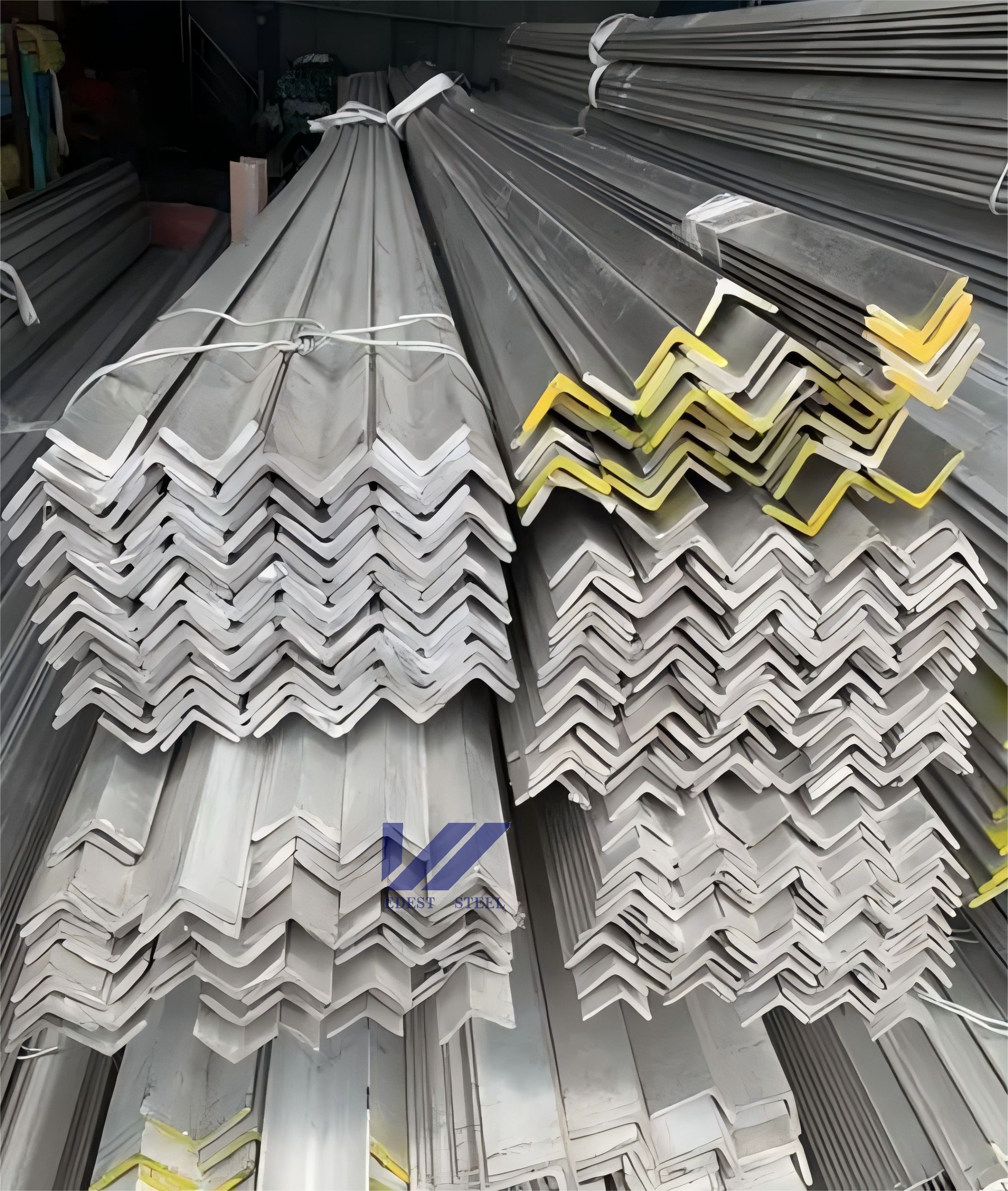

Hot sale SS 304 40x40mm thickness 5mm stainless steel angle

304 stainless steel angle steel is a metal profile with excellent performance and wide application.
"40*40" means that the width of both sides of the angle steel is 40 mm, which is an equilateral angle steel. This equilateral angle steel has good symmetry and stability, and is convenient for use in various buildings and engineering structures.
"5" means that the thickness of the angle steel is 5 mm. The thickness of the angle steel can ensure a certain strength while having good economy and applicability. It has high strength and toughness, can withstand a certain tension, pressure and bending force, and is suitable as a load-bearing member or connector of various structures, and is suitable for a variety of different scenarios.

Material characteristics

Various sizes:
304 stainless steel angle steel has different side lengths and thickness specifications.
The side length can range from a smaller size of 25mm×25mm to a larger size of 200mm×200mm.
There are also a variety of thickness options, which can be selected according to specific usage requirements.

Equal-leg angle steel and unequal-leg angle steel:
The two sides of the equal-leg angle steel are equal in length and symmetrical, which is suitable for some occasions with high requirements for structural symmetry.
The two sides of the unequal-leg angle steel are different in length and can be designed and used according to different stress conditions.

Uses:

Construction:
In building structures, it can be used to support and connect beams, columns, trusses, etc.

Machinery manufacturing:
Used to manufacture parts for various mechanical equipment

Chemical and petroleum industries:
Applicable to frames of chemical equipment, supports for oil pipelines, etc.

Food processing industry:
Used for structural parts and shelves of food processing equipment, etc.

304 stainless steel angle stock size table

Models

Size

Grade

2#	20×20×3	201/304/316
3#	25×25×3	201/304/316
4#	30×30×3/4	201/304/316
5#	40×40×3/4	201/304/316
6#	50×50×3/4/5	201/304/316
7#	60×60×5/6/8/10	201/304/316
8#	70×70×6/8/10	201/304/316
9#	80×80×6/8/10	201/304/316
10#	100×100×6/8/10	201/304/316
11#	120×120×8/10/12	201/304/316
12#	150×150×10/12	201/304/316
13#	200×200×10/12	201/304/316
14#	250×250×10/12	201/304/316

Chemical composition table of stainless steel angle

Grade	Chemical Composition (%)
	C	Si	Mn	P	S	Ni	Cr	Mo
201	≤0.15	≤1.00	5.5~7.5	≤0.060	≤0.030	3.50~5.50	16.00~18.00
301	≤0.15	≤1.00	≤2.00	≤0.045	≤0.030	6.00~8.00	16.00~18.00
302	≤0.15	≤1.00	≤2.00	≤0.045	≤0.030	8.00~10.00	17.00~19.00
304	≤0.08	≤1.00	≤2.00	≤0.045	≤0.030	8.00~10.50	18.00~20.00	-
304L	≤0.030	≤1.00	≤2.00	≤0.045	≤0.030	9.00~13.50	18.00~20.00	-
316	≤0.045	≤1.00	≤2.00	≤0.045	≤0.030	10.00~14.00	10.00~18.00	2.00~3.00
316L	≤0.030	≤1.00	≤2.00	≤0.045	≤0.030	12.00~15.00	16.00~18.00	2.00~3.00

Manufacturing capacity

EDEST STEEL have more than ten years stainless steel products exporting experience, with full range of product lines, including stainless steel bars, profiles, pipes and tubes, stainless steel strips and sheets etc. We have rofessional sales and service teams with our own processing center, enough inventory to make sure fast delivery, products can also be customized. We're aiming to provide customer a One-stop service.

Our commitment

our price may not be the lowest, but we adhere to the "quality first, service first" Our price is reasonable, we will be your most satisfied supplier in China

If you have any questions, please feel free to contact us! We are committed to providing you with the best products at the most reasonable prices, always providing our best service.

Hot Sale SS 304 40x40mm Thickness 5mm Stainless Steel Angle 1

Tag:

Place of Origin:	China
Brand Name:	EDEST STEEL
Certification:	ISO,PE, MTC BV SGS
Model Number:	304 angle

Minimum Order Quantity:	1ton
Price:	$1030-$1480 /Ton
Packaging Details:	Waterproof and rust-proof seaworthy packaged goods according to customer requirements
Delivery Time:	3-5 work days
Payment Terms:	L/C, T/T
Supply Ability:	5000 Ton/Tons per Month
