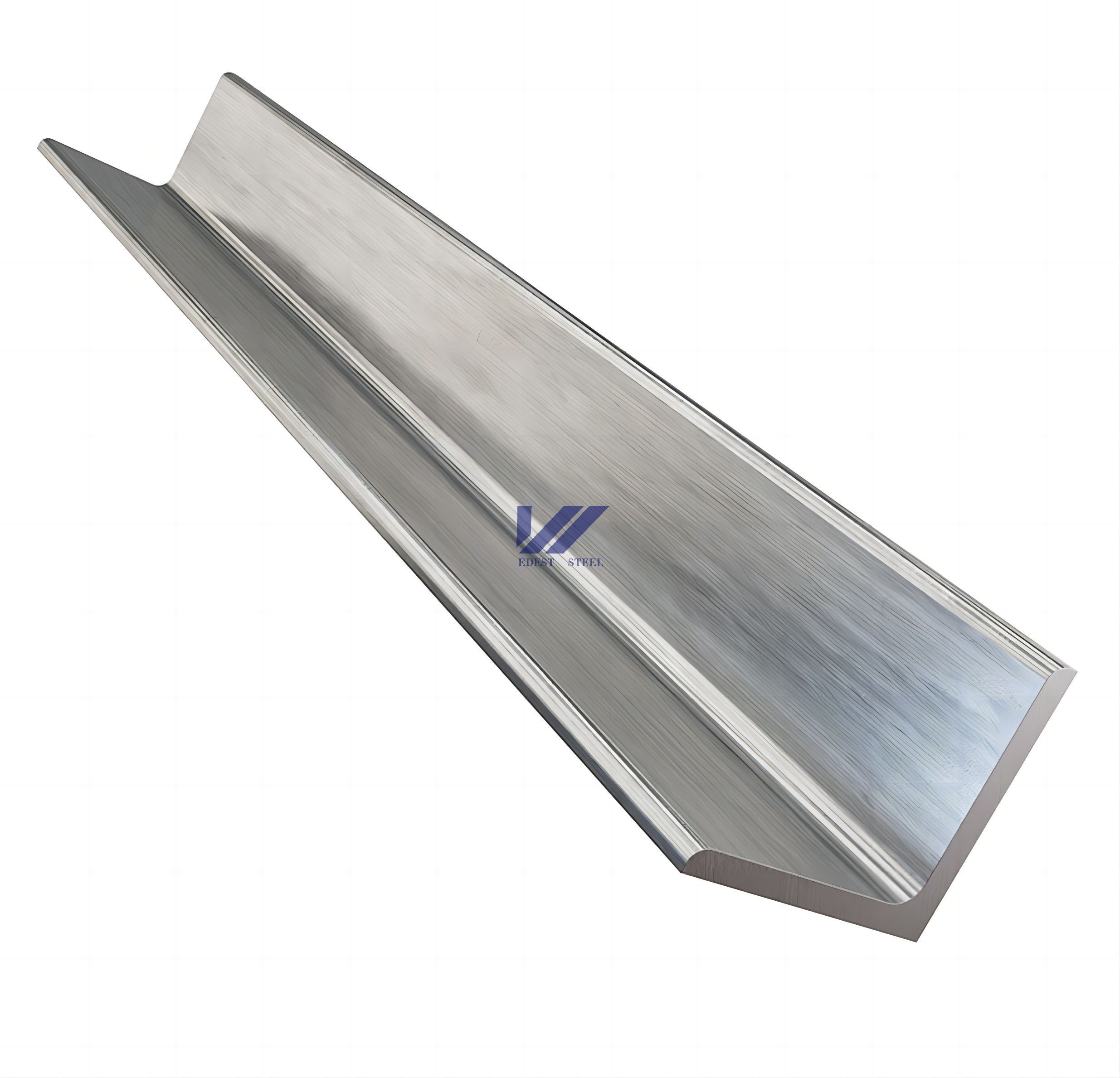

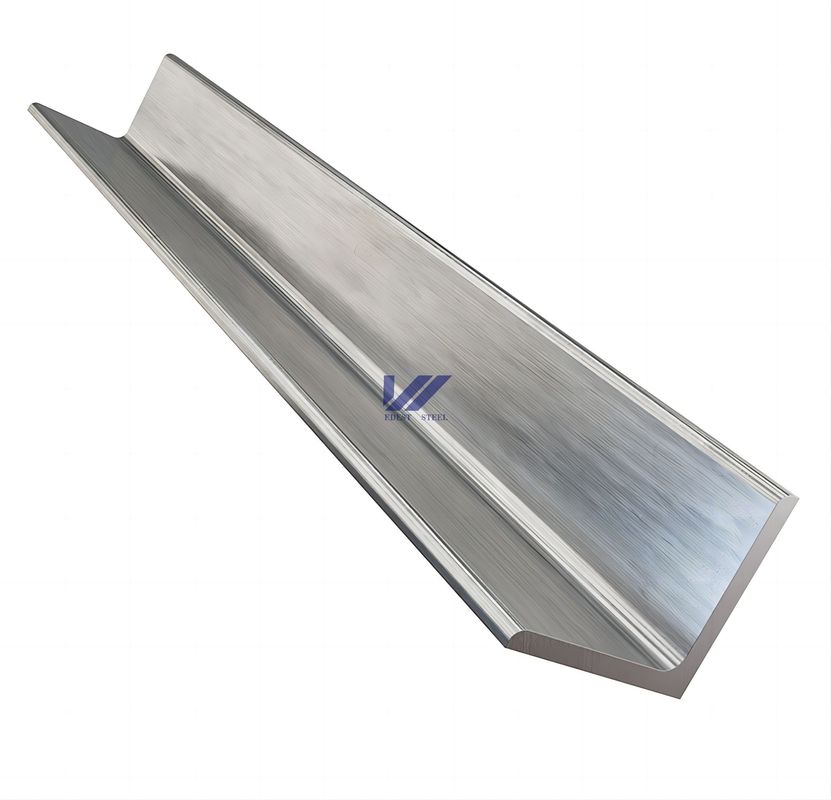

Structural support stainless steel angle equilateral size 40*40*5 304 angle
Product name: stainless steel angle
Angle steel grade: 304
Specifications: side length 40mm*side length 40mm*thickness 5.0mm
Single length: 6 meters
Stock quantity: 100 tons
Customization grade: 201 304 304L 316 316L 310S
Customization length: ≤9 meters or required length
Size range: 20*20mm-300*300mm
Stainless steel angle is a common building material with the characteristics of firmness and durability. It is widely used in various construction projects.
304 stainless steel angle is an angle steel made of 304 stainless steel material, usually used to make angle steel brackets, trusses, etc.
Characteristics of 304 stainless steel angle
Stainless steel angle is mainly divided into two categories, equilateral stainless steel angle steel and unequal stainless steel angle , among which unequal stainless steel angle can be divided into unequal thickness and unequal thickness.
Strong corrosion resistance:
304 stainless steel angle steel has good corrosion resistance and can resist the erosion of media such as atmosphere, water, acid, alkali, etc., so it can still maintain good performance in harsh environments such as humidity, acid and alkali
Excellent mechanical properties:
304 stainless steel angle steel has high strength and hardness, as well as good toughness and plasticity, and is easy to process into various shapes and specifications
Good heat resistance:
304 stainless steel angle steel can maintain stable performance in high temperature environments without obvious thermal expansion or deformation
Beautiful appearance:
304 stainless steel angle steel has beautiful appearance, smooth surface, and certain decorativeness, so it is widely used in industry, construction, home and other fields
304 stainless steel angle stock size table
|
304 stainless steel angle stock size table
|
|
Grade
|
Size
|
Size
|
Size
|
Size
|
Size
|
Size
|
Size
|
Size
|
Size
|
|
304
|
20x3
|
30x3
|
30x4
|
30x5
|
40x4
|
40x5
|
40x3
|
50x3
|
50x5
|
|
304
|
60x3
|
60x4
|
60x5
|
60x6
|
63x5
|
63x6
|
70x5
|
70x6
|
70x7
|
|
304
|
75x5
|
75x6
|
75x8
|
75x10
|
80x5
|
80x6
|
80x8
|
90x5
|
90x6
|
|
304
|
90x8
|
100x5
|
100x6
|
100x7
|
100x8
|
|
|
|
|
Chemical composition table of 304 stainless steel angle
| Grade |
Chemical Composition (%) |
| |
C |
Si |
Mn |
P |
S |
Ni |
Cr |
Mo |
| 201 |
≤0.15 |
≤1.00 |
5.5~7.5 |
≤0.060 |
≤0.030 |
3.50~5.50 |
16.00~18.00 |
|
| 301 |
≤0.15 |
≤1.00 |
≤2.00 |
≤0.045 |
≤0.030 |
6.00~8.00 |
16.00~18.00 |
|
| 302 |
≤0.15 |
≤1.00 |
≤2.00 |
≤0.045 |
≤0.030 |
8.00~10.00 |
17.00~19.00 |
|
| 304 |
≤0.08 |
≤1.00 |
≤2.00 |
≤0.045 |
≤0.030 |
8.00~10.50 |
18.00~20.00 |
- |
| 304L |
≤0.030 |
≤1.00 |
≤2.00 |
≤0.045 |
≤0.030 |
9.00~13.50 |
18.00~20.00 |
- |
| 316 |
≤0.045 |
≤1.00 |
≤2.00 |
≤0.045 |
≤0.030 |
10.00~14.00 |
10.00~18.00 |
2.00~3.00 |
| 316L |
≤0.030 |
≤1.00 |
≤2.00 |
≤0.045 |
≤0.030 |
12.00~15.00 |
16.00~18.00 |
2.00~3.00 |
Manufacturing capacity
EDEST STEEL have more than ten years stainless steel products exporting experience, with full range of product lines, including stainless steel bars, profiles, pipes and tubes, stainless steel strips and sheets etc. We have rofessional sales and service teams with our own processing center, enough inventory to make sure fast delivery, products can also be customized. We're aiming to provide customer a One-stop service.
